Wires and Cables

Garutmaan Cable


Garutmaan UL Cables

“Garutmaan” single core PVC insulated are manufactured using high conductivity, electrolytic grade, bright, plain, annealed bare/tinned copper conductors.

The UL authorized wires conform to Appliance wiring material (AWM) standards UL758 and CSA C22.2 No 210.

These cables are manufactured in sizes ranging from 245AWG to 16 AWG. Additional sizes can also be made available on request.

Download PDF
Garutmaan GXL, TXL & SXL Automotive Cables

“Garutmaan” single core low voltage primary cables, conforming to SAE J 1128, are manufactured using high conductivity, electrolytic grade, bright, plain, annealed bare copper conductors.

These cables are manufactured in sizes ranging from 20AWG to 10AWG.

Download PDF

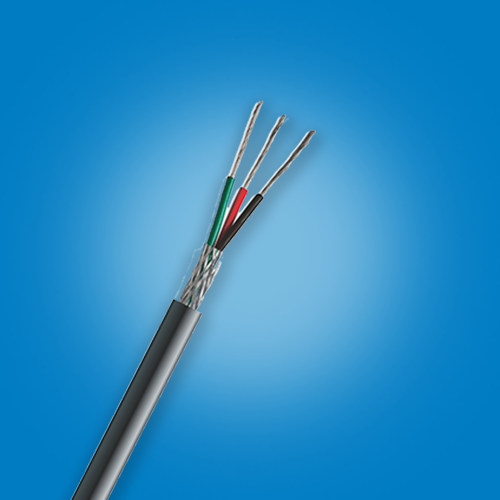

Garutmaan Shielded Cables

“Garutmaan” insulated and sheathed multicore braided cables are manufactured using high conductivity, electrolytic grade, bright, plain, annealed bare and tinned copper conductors.

These cables generally conforming to BS 5308-2.

Shielded cables are normally manufactured with up to 4 cores, in sizes ranging from 0.5²mm to 2.5²mm.Other sizes and cores can be provided on demand.

Download PDF
Garutmaan Braided cables

“Garutmaan” insulated and sheathed multicore braided cables are manufactured using high conductivity, electrolytic grade, bright, plain, annealed copper conductors.

These cables generally conforming to BS 5308-2.

Braided cables are normally manufactured with up to 4 cores, in sizes ranging from 0.5²mm to 2.5²mm.Other sizes and cores can be provided on demand.

Download PDF
Garutmaan FR PVC Single and Multicore Cables

“Garutmaan” single core PVC insulated, unsheathed flexible cables, conforming to IS694, are manufactured using high conductivity, electrolytic grade, bright, plain, annealed copper conductors. These cables are available with different type of PVC insulation. Accordingly, different characteristics can be provided.

Download PDF
Garutmaan Auto Cables

“Garutmaan” automotive cables are manufactured using high conductivity, electrolytic grade, bright, plain annealed copper conductors.

The conductors are insulated with a special grade of high temperature PVC compound.In addition to having high temperature withstand capacity (105°C), these wires are also high abrasion resistant and resistant to most fuels and lubricants used in automobiles.

FLRY-B cables are manufactured as per German standard DIN72551 Part 6 and international standard ISO6722 Class B, in sizes ranging from 0.35²mmto 6.0²mm.

Download PDF

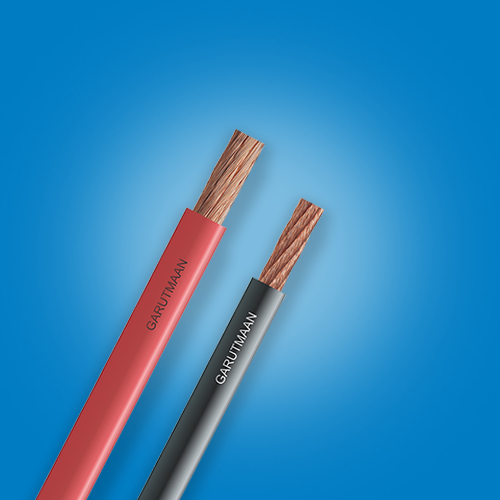

Garutmaan Battery Cables

“Garutmaan” single core PVC insulated (unsheathed) battery cables are manufactured using high conductivity, electrolytic grade, bright, plain, annealed copper conductors.

The cables are suitable for extreme conditions that prevail in automobile and other engines. The cables are insulated with special PVC compound which is resistant to most fuels and lubricants used in engines. These cables are manufactured in range of 10²mm to 95²mm.

Download PDF
Garutmaan Submersible Cables

“Garutmaan” PVC insulated and sheathed 3 core flat cables, confirming to IS694, are manufactured using high conductivity, electrolytic grade, bright, plain, annealed copper conductors. The sizes range from 1.5²mm to 6.0 ²mm.

Higher size cables can also be supplied on demand.

Download PDF

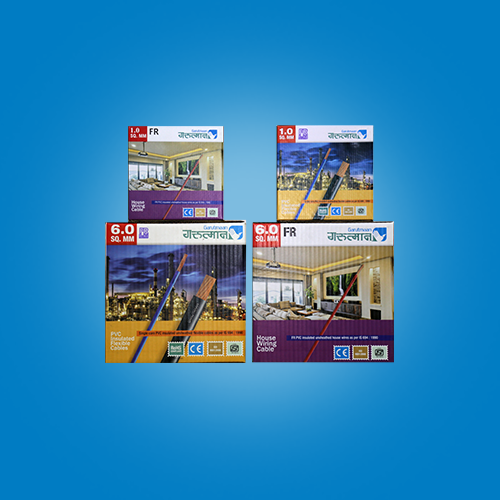

Garutmaan House Wiring

“Garutmaan” PVC insulated (unsheathed) cables for house wiring application are manufactured using high conductivity, electrolytic grade, bright, plain, annealed copper conductors. These cables confirm to IS694.

The conductors are insulated with dual layer of flame retardant (FR) grade PVC insulation. The inner layer consist of natural PVC and outer layer which provides the colour.

Download PDF
